Fiber optic splice box fixing 6

Fiber and communications infrastructure knowledge brief Published 13 Apr 2022

Prepared for preliminary research by the ENSAA knowledge desk. Confirm optical interfaces, port or core capacity, electrical input and output, enclosure protection, thermal design and installation limits against current standards and product documentation.

A fiber optic splice box with 6 adapters can be securely mounted using the provided fixing points, with proper cable preparation, splice tray management, and adapter installation.

Mounting the Splice Box

Identify Fixing Points: Most splice boxes, including industrial mini boxes like the FIMP-M, have designated fixing points for wall, pole, or DIN-rail mounting. Mark and Drill: Use the enclosure as a template to mark the fixing points. For concrete surfaces, use expanding bolts; for steel frames, use appropriately sized bolts with anti-vibration washers.

Secure the Box: Attach the box firmly to the surface, ensuring it is level and stable. Check that the IP-rated cover can close properly to maintain environmental protection.

Cable Preparation

Strip the Cable: Remove the outer jacket carefully without damaging the internal fibers. Maintain the recommended stripping length (e.g., ~180 cm or as specified in the manual),. Clean and Organize: Keep the work area dry and dust-free.

Ensure fibers are clean and free from kinks or bends.

Splice Tray and Fiber Management

Open the Splice Box: Unlock the plastic hoop or cover to access the splice tray. Arrange Fibers: Place fibers into the splice cassette, which is removable and stackable. Ensure fibers are secured and excess lengths are coiled neatly to prevent stress.

Splicing: Perform fusion or mechanical splicing according to standard procedures. Each fiber should be connected to the corresponding pigtail or adapter port.

Adapter Installation

Select Adapter Type: The FIMP-M supports 6 duplex or 3 quattro adapters, including ST, SC, LC, FC-PC, SC-RJ, SMA, or E2000. Insert Adapters: Snap the adapters into the front panel slots. Ensure each adapter aligns with the corresponding fiber pigtail.

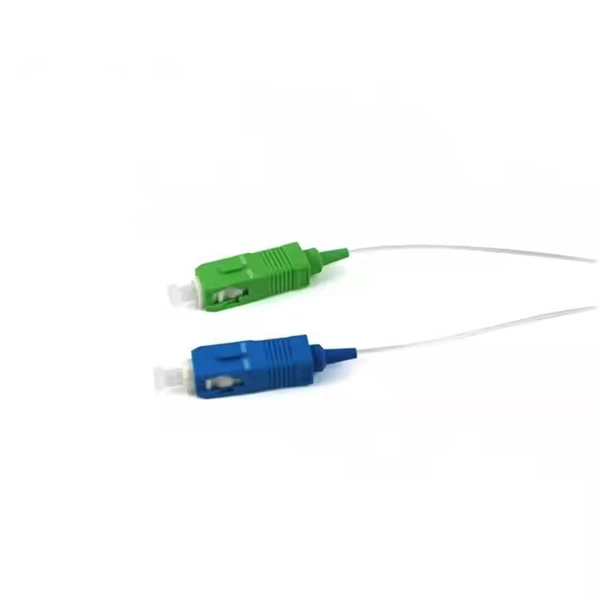

Connect Pigtails: Attach the pre-installed pigtails (e.g., 62. 5/125µ OM1 multimode) to the adapters, ensuring proper orientation and minimal bending.

Final Steps

Close the Box: Replace the cover and secure the sealing gasket to maintain environmental protection. Test Connections: Verify signal continuity and optical performance before finalizing installation. Periodic Inspection: Check the splice box periodically to ensure fibers remain secure and the enclosure is intact.

By following these steps, a 6-adapter fiber optic splice box can be installed efficiently, ensuring reliable fiber connections and protection against environmental factors.
