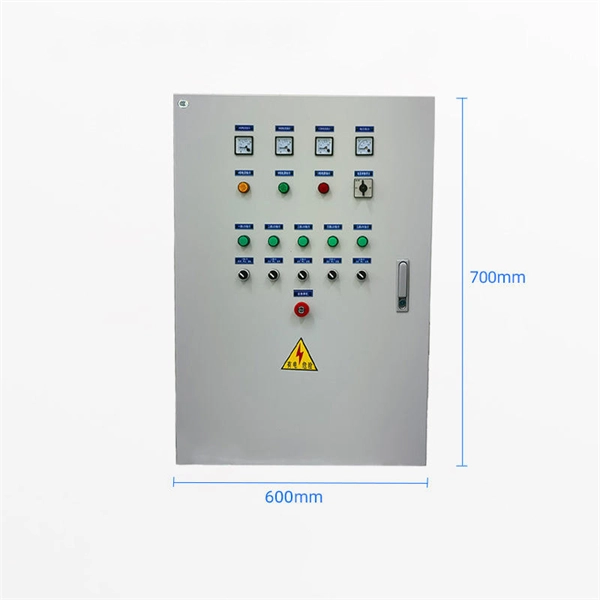

Installation diagram of the inlet wire of the distribution box

The inlet wire of a distribution box is connected to the main MCB, with phase and neutral wires entering the main switch, followed by connections to RCCB, output MCBs, and proper grounding.

Single-

Phase Distribution Box Wiring

Main Supply Connection: The incoming phase (live) and neutral wires from the utility supply are connected to the Main MCB (usually a double-pole 63A MCB for domestic installations).

RCC

B Connection: The output of the Main MCB is connected to the RCCB (Residual Current Circuit Breaker) to provide protection against leakage currents and electrical shocks.

The RCC

B output then feeds the individual output MCBs.

Output MC

Bs: Single-pole MCBs are used for individual circuits. The neutral wires of the loads are connected to a neutral link bar, and the phase wires are connected to the respective MCBs. Earthing: The earth wire from the supply and all load circuits is connected to the earth link in the distribution box.

Power Inlet Box Wiring (e.g., Reliance PB30/PB50)Mounting: Install the power inlet box on the exterior of the building using the provided mounting holes. Wire Preparation: Use a 4-conductor cord (minimum AWG #10 for 30A, #8 for 50A) with color-coded wires: black/red for line (phase), white for neutral, green for ground. Inlet Terminal Connections: Connect the line wires to the brass terminals marked "X" and "Y".

Connect the neutral wire to the nickel-plated terminal marked "W". Connect the ground wire to the green ground terminal marked "G". Junction Box Wiring: Run the wires from the inlet box to a junction box near the transfer switch or distribution panel.

Connect the cord wires to the corresponding terminals: red/black to line, white to neutral, green to ground. Torque and Safety: Ensure all terminal screws are tightened to the manufacturer's recommended torque (typically 20 inch-pounds) and that no insulation is inside the terminals.

Safety and Best Practices

Always turn off the main supply before wiring. Use copper wires only and follow local electrical codes. Ensure proper grounding to prevent electrical shock.

Verify wire color coding to avoid miswiring. For generator connections, locate the inlet box away from doors and windows to prevent carbon monoxide buildup. This setup ensures that the incoming power is safely distributed through the main MCB, RCCB, and output MCBs, with proper neutral and earth connections, providing protection for both the electrical system and users.
