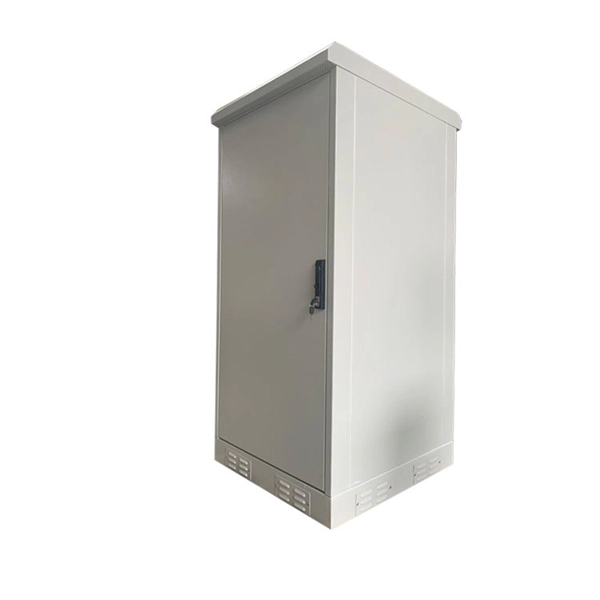

Properly Configure Distribution Boxes

Proper configuration of distribution boxes involves careful selection, safe placement, precise wiring, protective device installation, and adherence to electrical standards to ensure safety and reliability.

Selection and Placement

Choose a distribution box based on environment, load capacity, and durability. Indoor boxes can be plastic or steel, while outdoor or industrial boxes require higher IP/NEMA ratings for protection against water, dust, and corrosion. Install the box in a dry, accessible area with good ventilation, typically at a height of around 1.

5 meters. Ensure the box is level and stable, using expansion bolts or brackets for secure mounting.

Wiring and Connections

Wire Preparation: Strip wires to the appropriate length and follow color coding standards (e.g., Phase A - Yellow, Phase B - Green, Phase C - Red, Neutral - Light Blue, Protective Earth - Yellow/Green bi-color),. Neat Arrangement: Route wires horizontally or vertically, maintaining smooth bends with a radius at least six times the wire diameter. Tie wires into bundles to prevent slack and tangling.

Secure Connections: Use spring washers and ensure all terminals, including neutral and earth, are tight and secure to prevent loosening and electrical hazards. Circuit Breakers and Fuses: Install breakers or fuses for each circuit, matching the current rating and type required. Connect phase, neutral, and earth conductors properly to busbars.

Safety and Testing

Protective Equipment: Operators should wear insulating gloves, safety glasses, and slip-resistant shoes during installation. Power Verification: Ensure the power is completely cut off and verify with a multimeter before starting work. Insulation and Continuity Tests: Use an insulation resistance tester and multimeter to check wiring integrity and circuit continuity.

Final Checks: Inspect all components, confirm correct breaker ratings, and ensure proper heat dissipation and spacing.

Labeling and Documentation

Label each circuit clearly and maintain as-built drawings for future maintenance and troubleshooting. Modular designs can simplify upgrades and replacements.

Maintenance

Conduct monthly visual inspections for overheating, corrosion, or physical damage. Tighten connections annually to prevent heat buildup from loose terminals. Clean the enclosure and check for dust or debris that may affect insulation or heat dissipation.

Additional Considerations

Include surge protectors and other protective devices to safeguard against lightning or voltage spikes. For industrial or outdoor setups, ensure the box can withstand harsh environmental conditions and high electrical loads. By following these methods, distribution boxes can be configured safely, efficiently, and in compliance with standards such as NEC, IEC, or local codes, ensuring long-term reliability and protection for electrical systems.
