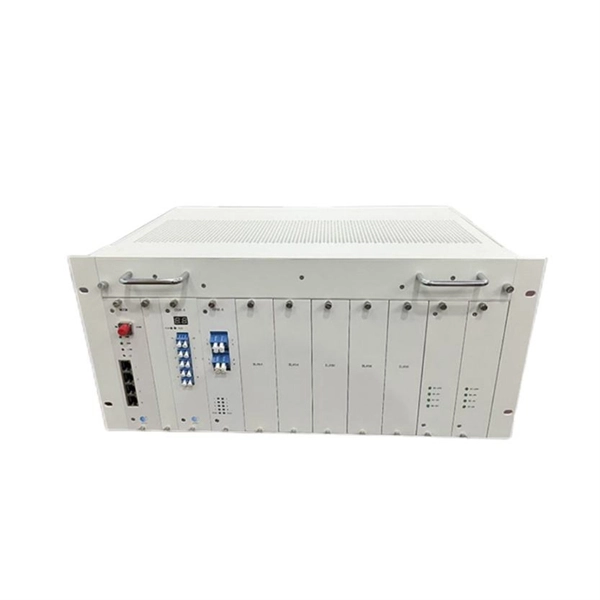

Optical Module Installation and Testing

Optical module implementation testing ensures performance, reliability, and interoperability of high-speed transceivers and co-packaged optical devices before deployment.

Key Testing Objectives

Optical module testing validates that modules meet performance specifications, standards compliance, and operational reliability. Core objectives include: Verifying transmit and receive power levels to ensure signal integrity. Measuring Bit Error Rate (BER) to detect transmission errors and jitter.

Confirming Digital Diagnostic Monitoring (DDM) accuracy for real-time operational metrics. Ensuring interoperability with network switches and other modules, including pluggable and co-packaged devices.

Common Testing Methods

Optical Power Measurement: Use an optical power meter to check Tx/Rx power levels against module specifications, ensuring the signal is neither too weak nor too strong. Bit Error Rate Testing (BERT): Send PRBS patterns to detect errors, measure jitter, and validate signal quality. Recommended for 25G+ and high-speed PAM4 modules.

Loopback Testing: Connect a module to itself or a second module to verify full-duplex operation and DDM accuracy. Eye Diagram Validation: For PAM4 or QSFP28 modules, eye diagrams reveal signal clarity, mask margins, and jitter levels. Visual Inspection and Cleaning: Use intelligent fiber end-face inspection tools and non-contact cleaning machines to detect and remove dirt or scratches, ensuring low insertion loss.

Optical Path Switching and Power Monitoring: Automated switches and optical power meters allow multi-channel testing and aging tests for high-speed modules.

Implementation Considerations

Thermal and Mechanical Setup: Maintain adequate spacing around chassis for heat dissipation and ensure proper grounding for electromagnetic compatibility. Standards Compliance: Test modules according to IEEE 802. 3, MSA, and IPEC specifications for PAM4 800G modules, including lane-level power consumption, interconnection, and interoperability.

Co-

Packaged Optics: For co-packaged devices, testing must consider electrical interface standards (XSR, PCIe, AIB) and optical interface standards (VR4, SR4, DR4, FR4) to ensure backward compatibility and high-bandwidth performance.

Recommended Equipment

Bit Error Rate Tester (BERT 800/CR600) for high-speed NRZ/PAM4 modules. Optical Power Meter (OPM) for accurate Tx/Rx measurements. Programmable Optical Attenuator for power adjustment.

Smart

Check Fiber Endface Inspector for automated visual inspection. Loopback plugs and test patch cords for functional verification.

Best Practices

Record serial numbers, symbol errors, BER, and raw physical BER for traceability. Perform insertion and removal tests to validate deployment robustness. Use pre-coded, MSA-compliant modules to avoid compatibility issues with OEM switches.

Conduct aging and stress tests to ensure long-term reliability in high-bandwidth environments. By following these procedures, network engineers and integrators can ensure that optical modules perform reliably, meet standards, and maintain high-quality links in data centers, telecom networks, and AI/ML high-performance computing environments.
